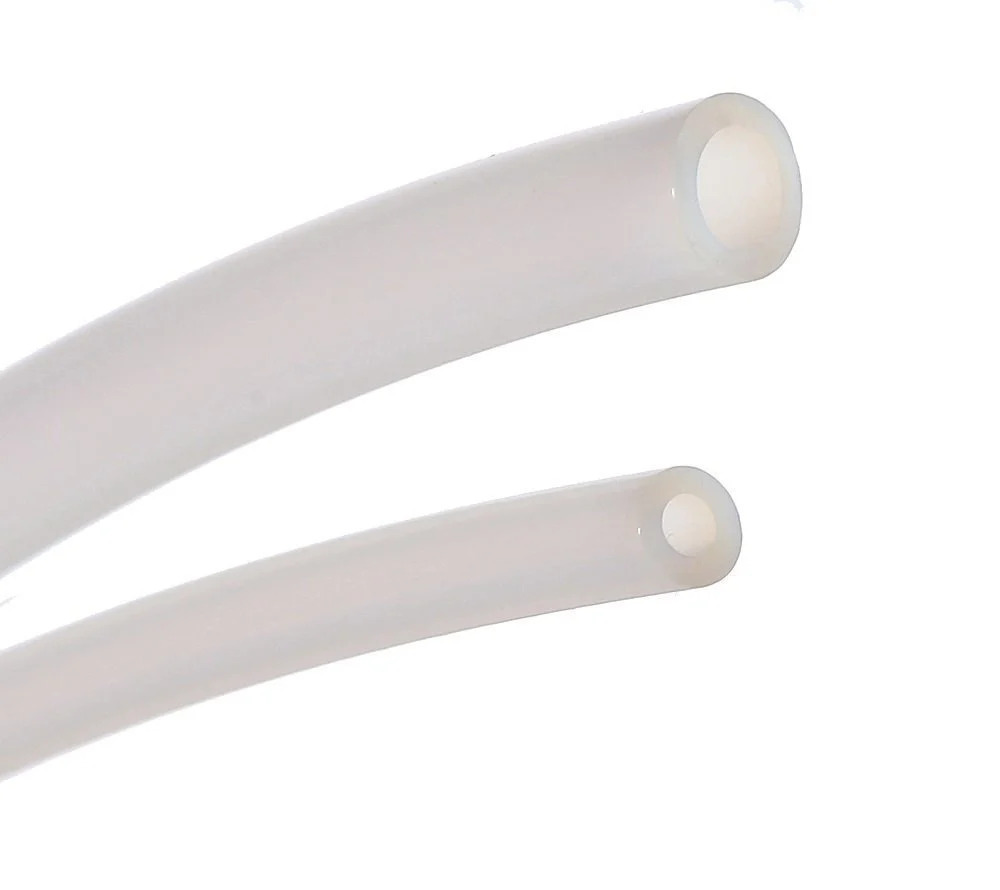

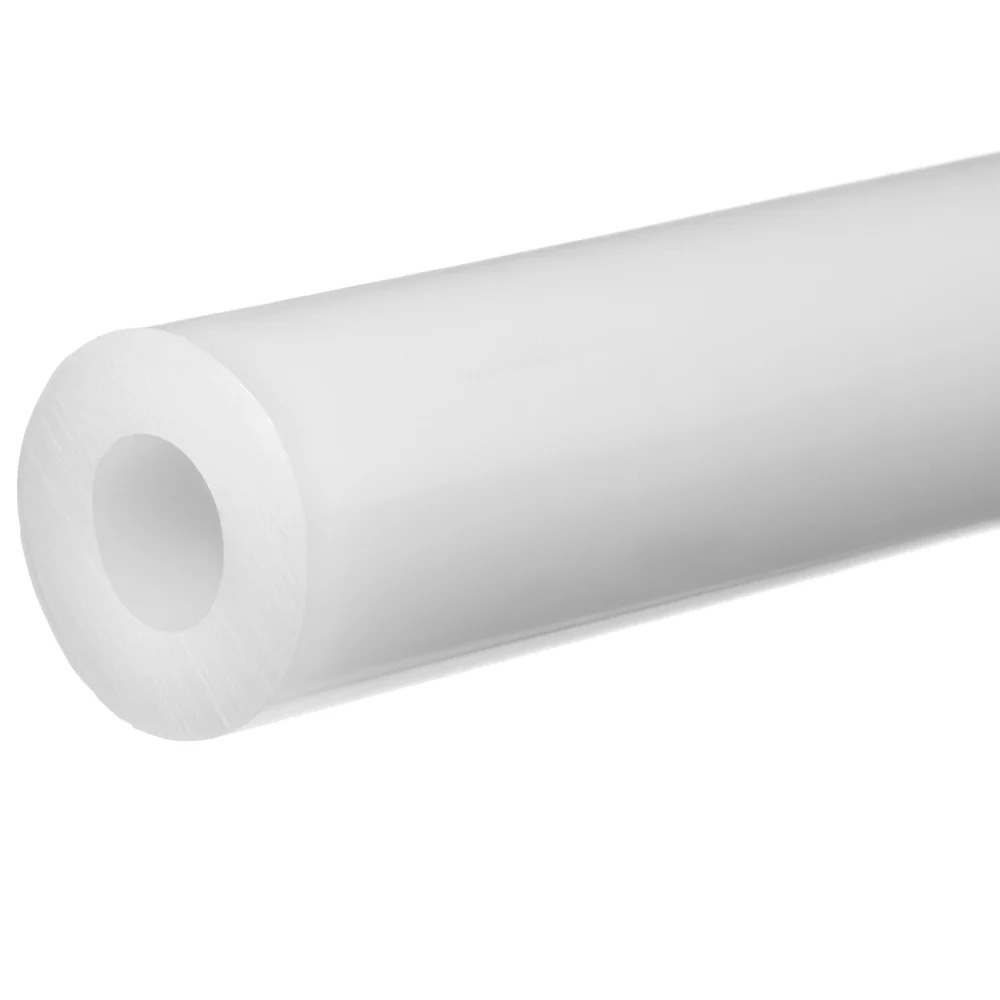

PTFE Moulded Tubes

Name: PTFE Moulded Tubes
Brand: ELECTRO POLYMERS INDUSTRIES
Price: 850 INR
Availability: InStock

Price 850 INR/ Meter

Get a Price/Quote

MOQ : 10 Meters

PTFE Moulded Tubes Specification

Type
PTFE Moulded Tubes

Material
PTFE

Working Temperature
-200C to +260C

Density
2.3 Gram per cubic centimeter(g/cm3)

Corrosion Protection
Excellent chemical resistance

Tensile Strength
21-35 MPa

Thickness
1 mm to 10 mm or as specified

Melting Point
327C (620F)

Size
Different Size

Width
Customizable (commonly 3 mm to 150 mm OD)

Length
4 Meter (m)

Electrical Insulation
Excellent dielectric properties

Resistance
Resistant to almost all chemicals and solvents

Moisture Absorption
Nil

Hardness (Shore D)
58-62

Thermal Conductivity
0.25 W/mK

Applications
Linings, fluid transfer, insulation, chemical processing

Color
Milky White or Translucent

Food Grade
Yes, FDA approved

Non-Flammability
Inherently non-flammable

Friction Coefficient
Very Low (0.05-0.10)

PTFE Moulded Tubes Trade Information

Minimum Order Quantity
10 Meters

FOB Port
ALL india and export

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
5000 Meters Per Month

Delivery Time
7-10 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

PTFE Moulded Tubes About

On account of our rich experience and comprehension, our firm is capable of manufacturing and supplying high grade PTFE Moulded Tubes to our clients. It is technologically made at our fully incorporated manufacturing unit by using optimum grade materials and advanced techniques. This item is perfect choice to use in chemical processing, semiconductor manufacturing, and other industrial applications for required applications. To ensure best grade product delivery, we offer this PTFE Moulded Tubes to our clients after testifying on various quality parameters under the supervision of our adroit quality controllers. We offer the same at a market leading price rate.

Superior Material for Industrial Applications

PTFE Moulded Tubes offer outstanding versatility and performance in industrial settings. Their unique combination of high chemical resistance, zero moisture absorption, and non-flammability makes them ideal for use as linings, insulation, and fluid transfer components. With FDA approval for food-grade applications and full customizability, these tubes can be precisely tailored for use in chemical processing, pharmaceutical, or food industries.

Unmatched Reliability and Durability

Engineered with a density of 2.3 g/cm3 and a tensile strength of 21-35 MPa, these tubes provide exceptional stability even under harsh operating conditions. Their excellent dielectric properties ensure safe and effective insulation, while the tubing's inherent non-flammability and high melting point (327C) add layers of operational safety. Their customizable length and width make them a flexible choice for a myriad of projects.

FAQ's of PTFE Moulded Tubes:

Q: How are PTFE moulded tubes manufactured to ensure consistent quality?

A: PTFE moulded tubes are produced through a molding process, where high-purity PTFE resin is compressed and sintered in specialized molds. This technique ensures uniform density, robust chemical resistance, and precise dimensions across various sizes and thicknesses.

Q: What are the main benefits of using PTFE moulded tubes in fluid transfer applications?

A: PTFE moulded tubes offer very low friction, zero moisture absorption, and resistance to almost all chemicals, ensuring smooth, contamination-free fluid transfer. Their FDA-approved food-grade quality also means they're safe for handling consumables and sensitive solutions.

Q: When should I choose PTFE moulded tubes over other materials?

A: Select PTFE moulded tubes when you require exceptional chemical resistance, broad temperature tolerance (-200C to +260C), non-flammability, and excellent electrical insulation. They're particularly suited for challenging environments such as chemical processing or electrical insulation.

Q: Where can PTFE moulded tubes be installed within a facility?

A: These tubes are commonly installed as linings in chemical tanks, pipes for fluid transfer, insulation components in electronic assemblies, and wherever corrosion protection or non-reactivity is essential across industries such as food processing, pharmaceuticals, and manufacturing.

Q: What is the typical process for customizing PTFE moulded tubes to meet project requirements?

A: Customization begins with specifying desired outer diameter (commonly 3 mm to 150 mm), thickness (1-10 mm or more), and length (typically 4 meters). Additional properties like food-grade certification or specific dielectric performance can also be addressed during manufacturing.

Q: How does the inherent non-flammability of PTFE moulded tubes enhance safety?

A: Since PTFE is inherently non-flammable, it does not propagate flames or release toxic fumes on exposure to heat, providing an added layer of safety in environments where fire risk or high temperatures are present.
